SMS (Site-Mixing-System)
&
UMS (Universal-Mixing-System)
preparation of the emulsion, addition of dry components, and sensitizing on-site
preparation and sensitizing of emulsion, production of ANFO or Heavy-ANFO on-site with SMS or RPS technique
SMS & UMS Features
- System is completely MEMU certified

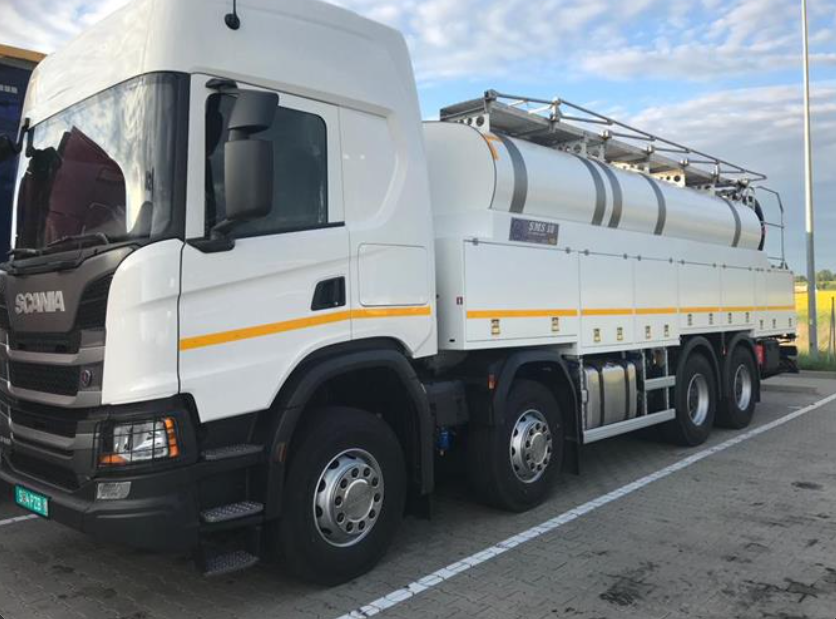

- System adaptable to most chassis from all suppliers; current available standard is built on SCANIA.
- Key Components (such as pumps) customizable to match individual requirements.
- From two up to four components (matrix, AN prills, aluminum powder, pre-oiling)
- Adjustable production rate: to up to 300 kg/min (standard 100kg/min)
- Capacity: up to 18tons due to new design
• Site Mixing and Universal Mixing
• Loading distance 20-80 meters, (others on demand), • Hose diameter from 0,5 inch to 2 inch.
more Features
- Dosing of all relevant product components is monitored and controlled by electronic instruments such as mass-flow meters.
- Hand-picked choice of materials for the complete equipment based on experience and special considerations in order to ensure long lasting and reliable durability!
- (f.i. stainless steel and special plastic components such as PP HD and PEEK)
- Arctic version: Optional complete Isolation of vessels and hatches ensures workability in
any environment of -40°C to +50°C (Aluminum Emulsion tank can be supplied for Scandinavia)
Safety Systems as per MEMU / ADR
- Mechanical and electronic safety control for pressure and temperature
- Automatic fire extinguishing system (ANSUL)
- Redundant design of all relevant control systems
- Rupture discs
User friendly features
- Easy access to relevant equipment and instruments
- High pressure cleaner included
- „Self-cleaning“ tank-shape
- Closed and secured stowage and control elements
- Design concept allows quick replacement of relevant components for on-site repairs.
- Network / Internet access to all control and monitoring systems
